| Size | PR | Load Index | Overall Diameter (mm / inch) |
Section Width (mm / inch) |
Tread Depth (mm / 32nds) |
Rim | Max Load (Single) (kg / lbs) |
Max Load (Dual) (kg / lbs) |
Pressure (kPa / psi) |
|---|---|---|---|---|---|---|---|---|---|
| 11R22.5 | 16(H) | – | 1054 / 41.5 | 279 / 11.0 | 10.3 / 13.0 | 8.25 | 3150 / 6940 | 2900 / 6395 | 850 / 123 |
| 11R24.5* | 16(H) | 149/146M | 1116 / 43.9 | 279 / 11.0 | 10.3 / 13.0 | 8.25 | 3250 / 7160 | 3000 / 6610 | 825 / 120 |
| 295/75R22.5 | 14(G) | 144/141M | 1014 / 39.9 | 298 / 11.7 | 10.3 / 13.0 | 9.00 | 2800 / 6170 | 2575 / 5675 | 760 / 110 |
| 295/75R22.5 | 16(H) | 146/143M | 1014 / 39.9 | 298 / 11.7 | 10.3 / 13.0 | 9.00 | 3000 / 6610 | 2725 / 6005 | 825 / 120 |

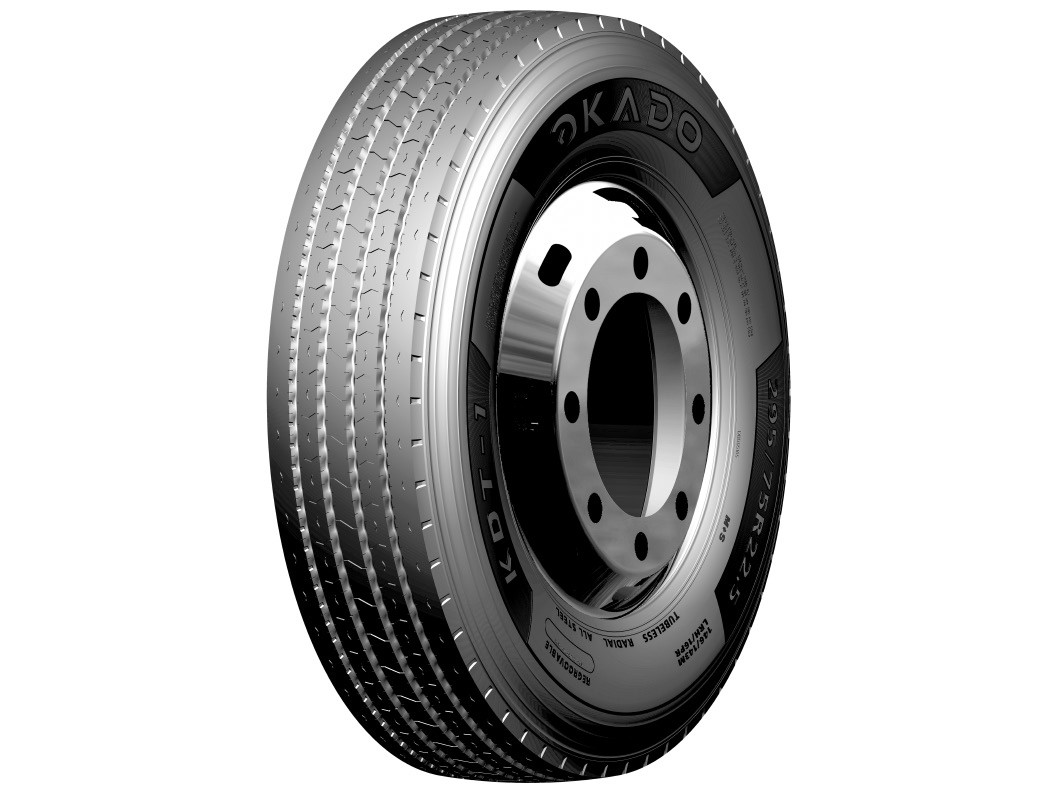

KDT-1
HIGH FUEL-EFFICIENCY TO ENJOY LONG MILEAGE
- Wider tread and four-layer belts structure
- Multi-sipes improve traction and heat dissipation in wet conditions
- The grooves on the tread can improve the self-cleaning performance
- Optimal tread design reduce rolling resistance to improve fuel economy
- The wide shoulder increase the tire’s wear resistance
