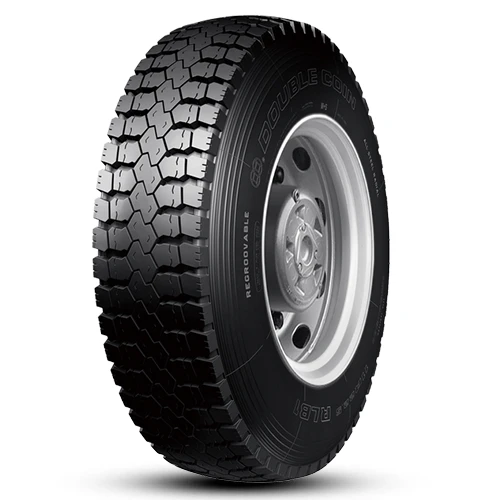

RLB1

Premium open shoulder drive-position tire

The Double Coin RLB1/RLB11 drive-position commercial truck tire delivers long tire life and features an aggressive and deep open shoulder tread design that provides a biting grip and solid traction in rain, snow and mud.

  • Open shoulder design provides excellent traction in wet and dry conditions; deep tread depth for long original mileage.
  • Full-depth siping provides excellent performance throughout the life of the tread.
  • Heavy-duty casing for stability and promotion of retreading.
  • Tubeless and tube-type sizes for special applications.
Categories: , , Tags: , , , , , , , , , , ,
Size Ply Rating Load Range Load Index Speed Symbol Overall Diameter (inch) Section Width (inch) Tread Depth (32nds) RIM
11R22.5 14 G 144/142 M 41.7 10.9 26 8.25
11R22.5 16 H 148/145 M 41.7 10.9 26 8.25
295/75R22.5 14 G 144/141 L 40.9 11.7 26 9
11R24.5 14 G 146/143 L 43.7 10.9 26 8.25
11R24.5 16 H 149/146 L 43.7 10.9 26 8.25
285/75R24.5 14 G 144/141 L 41.9 11 26 8.25
225/70R19.5 14 G 128/126 N 32.5 8.8 19 6.75
245/70R19.5 16 H 136/134 J 33.5 9.6 19 7.5
9.00R20 16 H 144/142 L 40.6 10.1 26 7
10.00R20 16 H 146/143 L 41.5 10.7 22 7.5
10R22.5 14 G 141/139 K 40.2 10 22 7.5
255/70R22.5 16 H 140/137 K 36.7 9.9 22 7.5
295/80R22.5 18 J 152/149 M 41.5 11.7 26 9
11.00R20 16 H 150/147 L 43.1 11.2 29 8
